VJTI Student Housing

Stacked Housing (Winning entry in an invited two stage competition - Veermata Jijabai Technological Institute (V.J.T.I.) )

Concept/Philospohy

Stacked student housing is designed so as to move away from the typical dormitory or hostel typology, which in our opinion fosters a regimented form of social control by use of single loaded corridor organizations. The challenge was to break away from the notion of stacked student housing where there is no exchange between students, owing to the tight site constraints forcing dead vertical development as a common imagination.

vjti_veermata_Jijabai_technological_institute_mumbai_student_housing_mobile_offices_02_diagram_form evolution — Form Evolution

Program and Organisation

With an aim to respond to these, a conscious design framework was introduced that facilitated opportunities for an active social and cultural life to flourish. This was done by integrating circulation and sequencing different collective programs within the hostel in the horizontal voids.

PROJECT TYPE

Master planning, Residential

LOCATION

Matunga , Mumbai

CLIENT

Veermata Jijabai Technological Institute (V.J.T.I.)

PROJECT STATUS

2015 -present (Under construction)

PLOT AREA

2020 sqm (65,700 sqm campus area)

Executing Agency

Public Works Department

BUILT-UP AREA

10,000 sqm

Structural Consultants

Kelkar Design Private Limited

MEP CONSULTANTS

Arkk designs

QUANTITY SURVEYORS

Dongre Associates

TEAM

Sudipta Iyer, Jugal Ahuja, Akshay Aditya, Kunal Mokasdar, Sanket Kamdar, Manan Vikam, Yash Salian

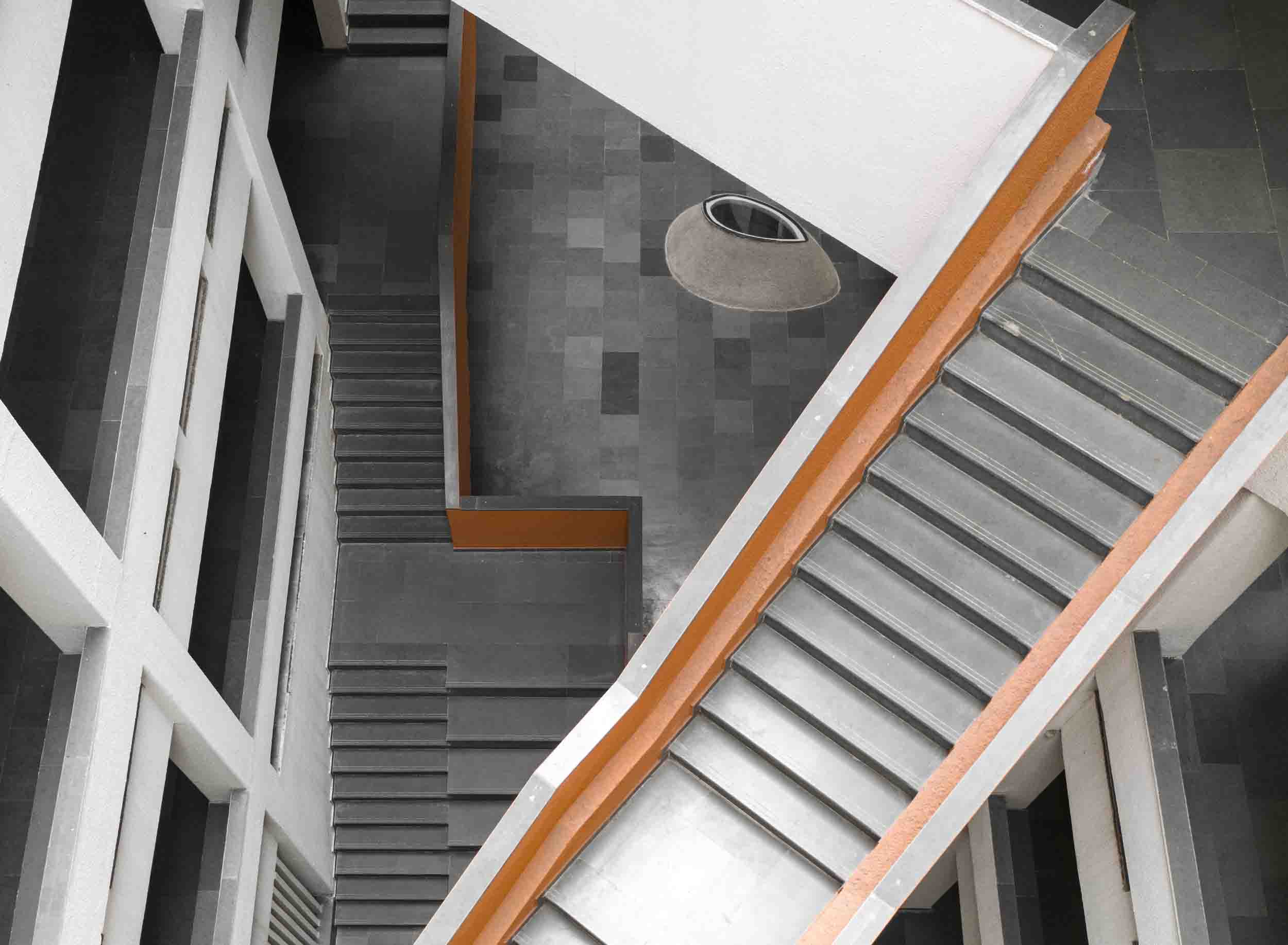

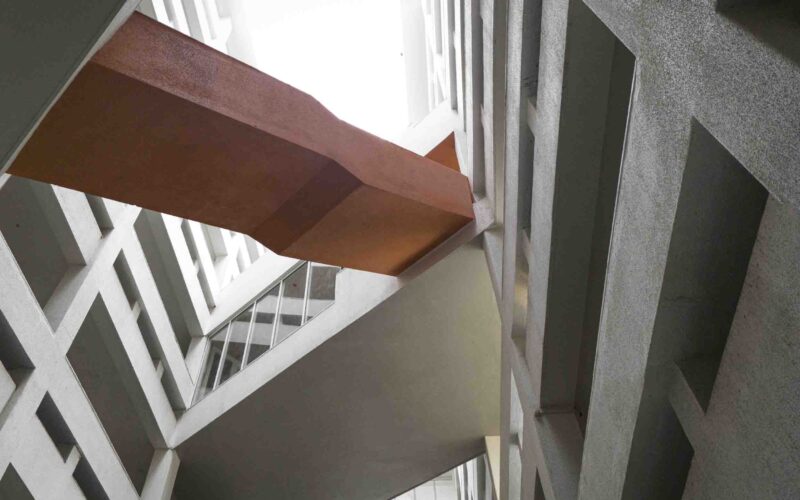

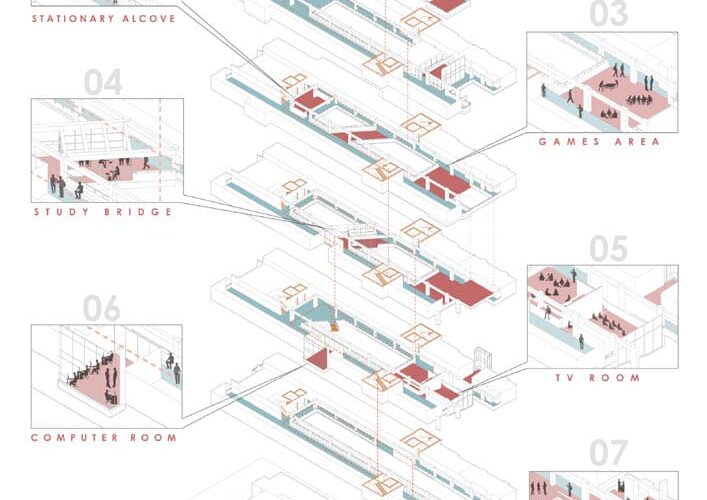

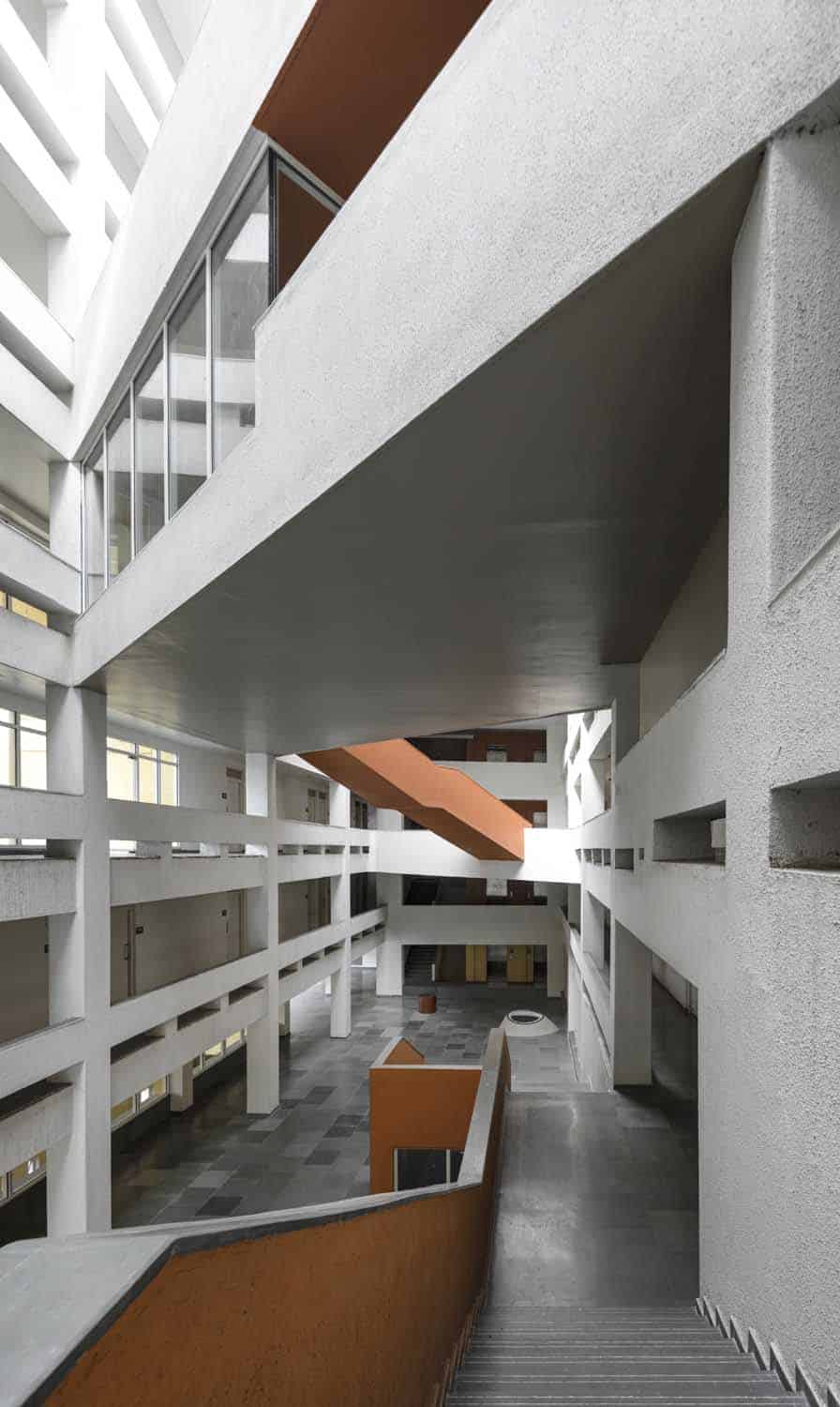

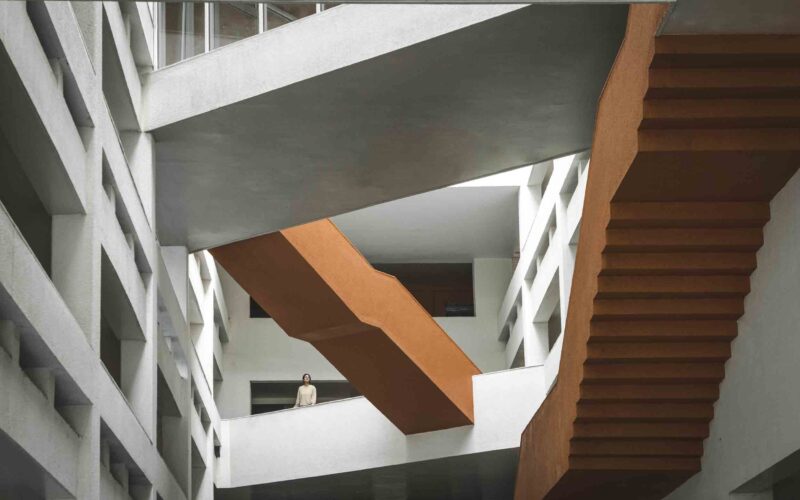

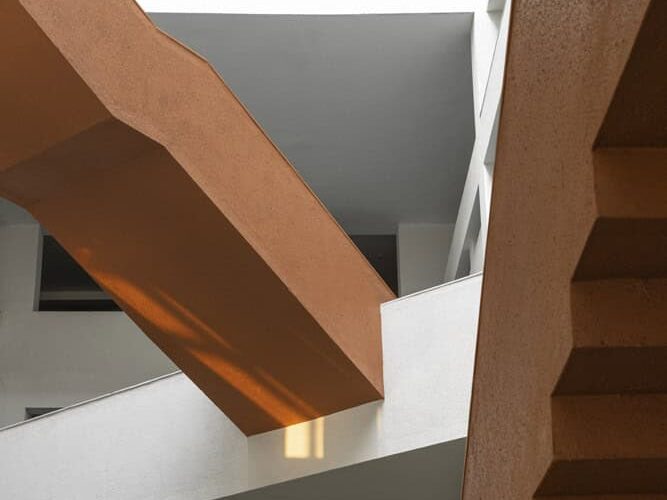

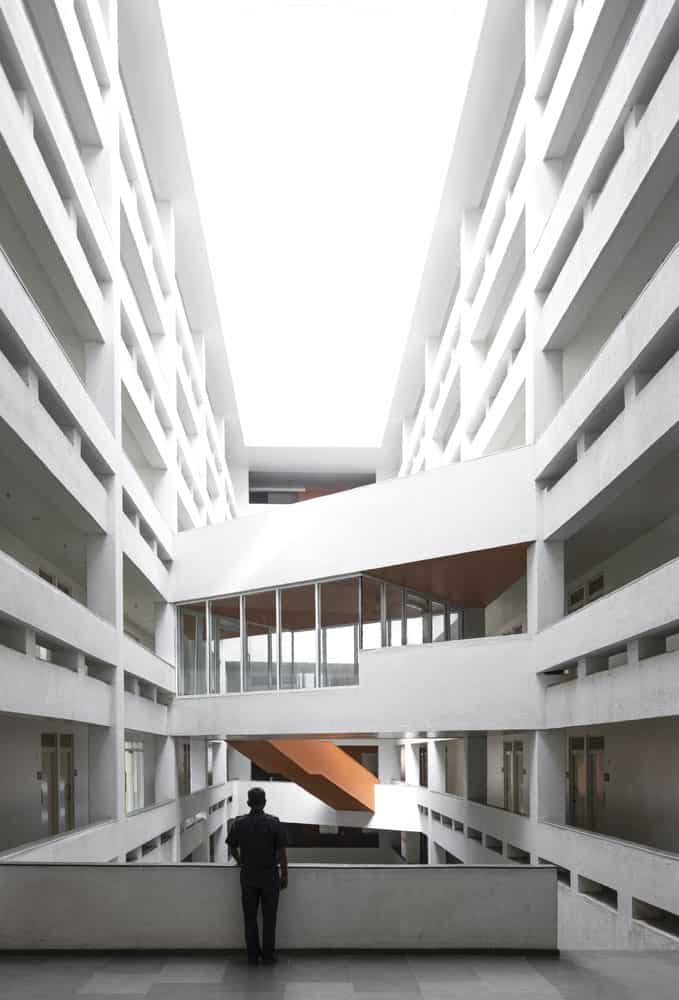

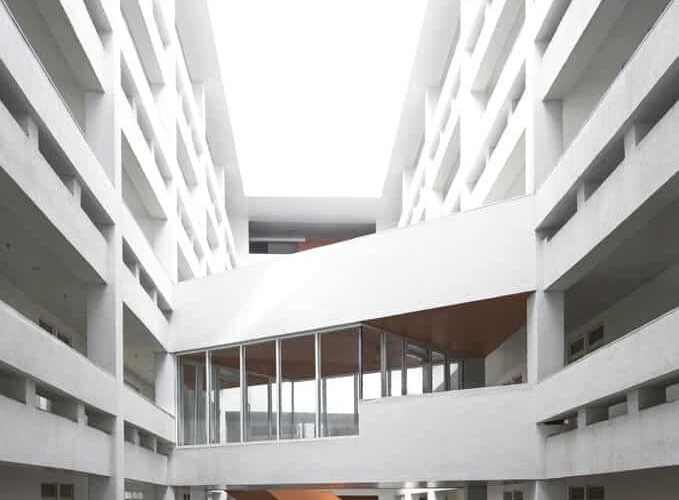

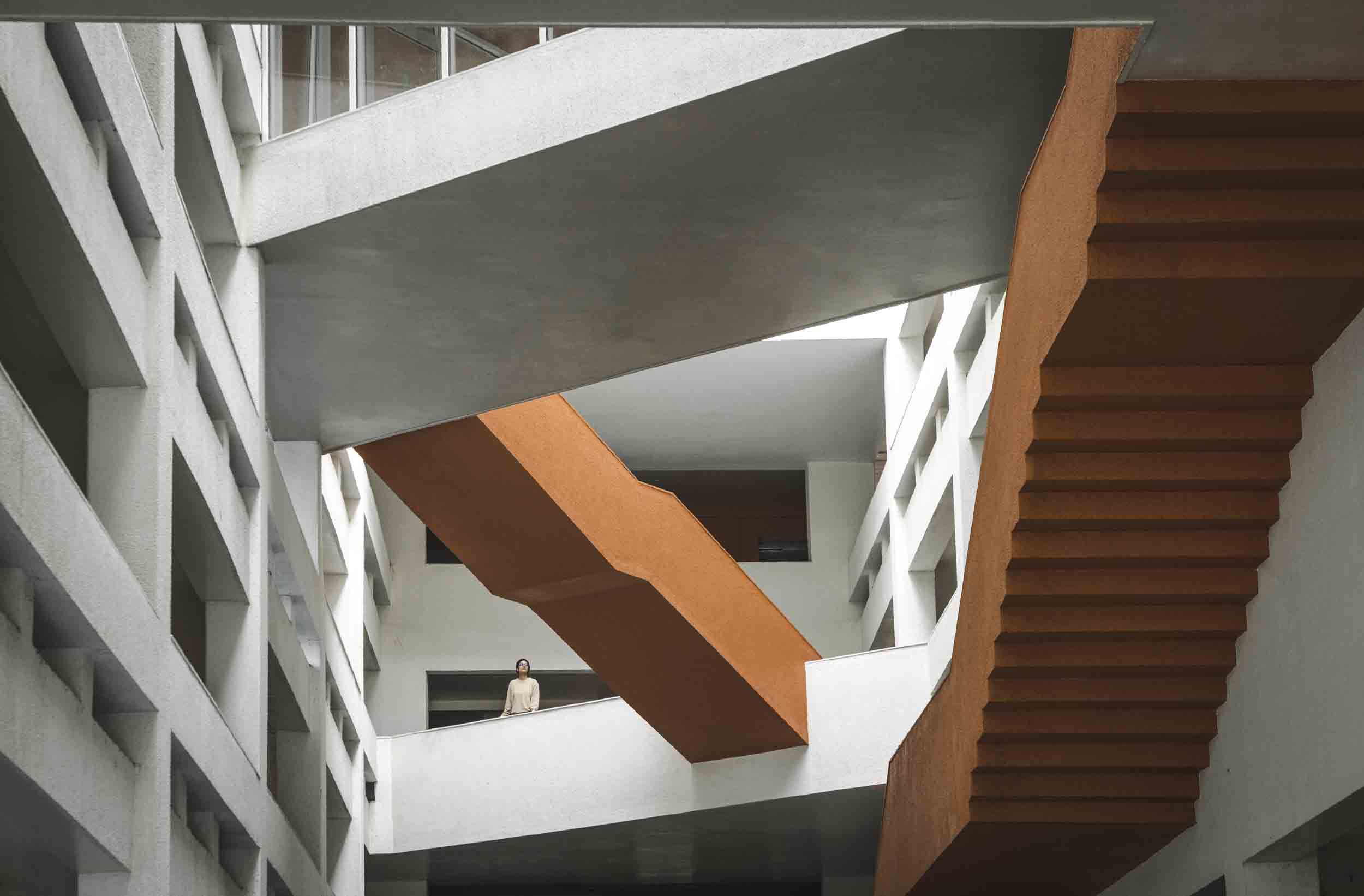

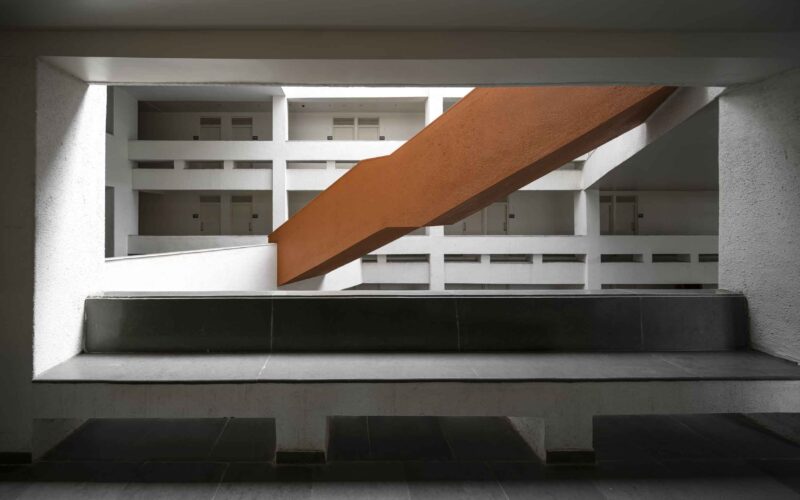

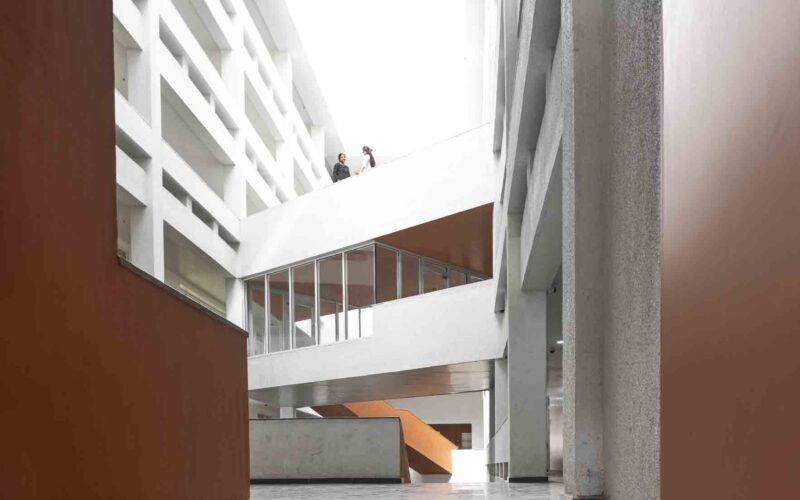

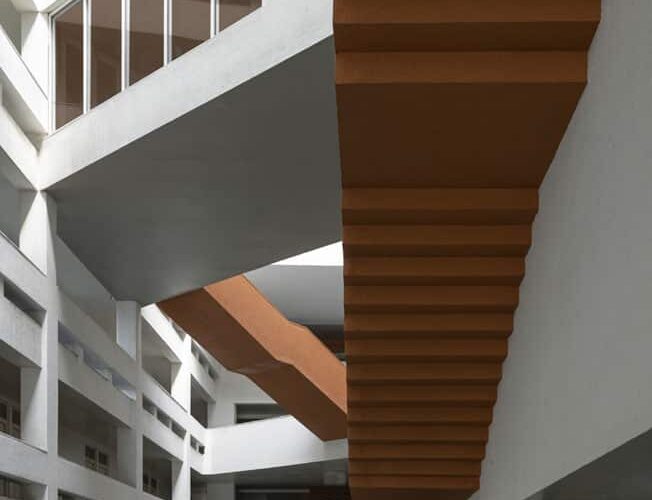

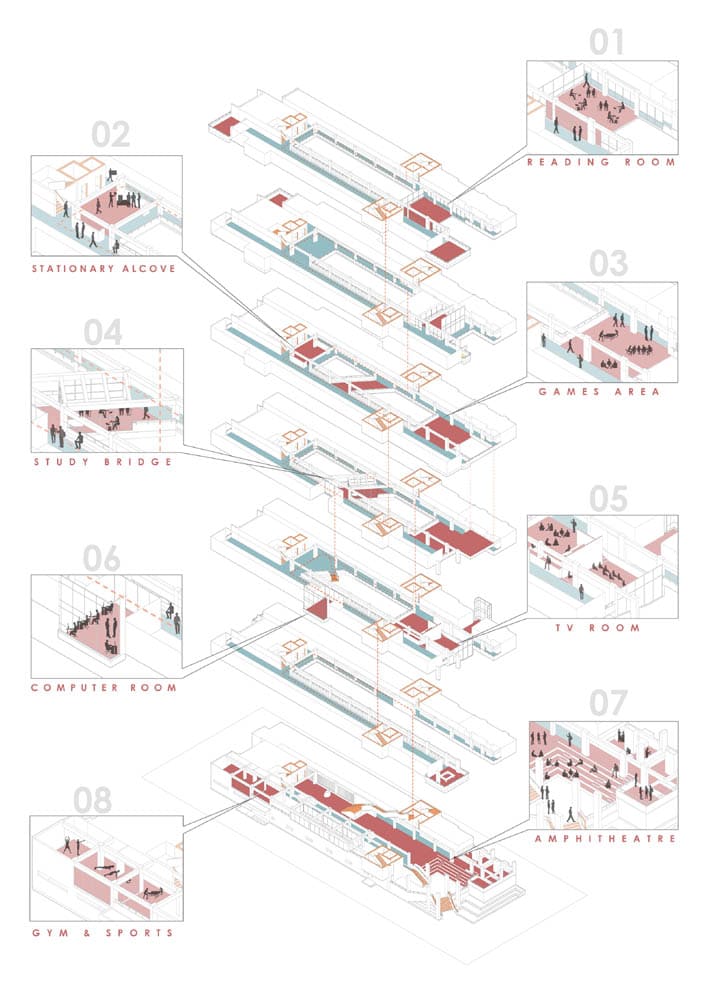

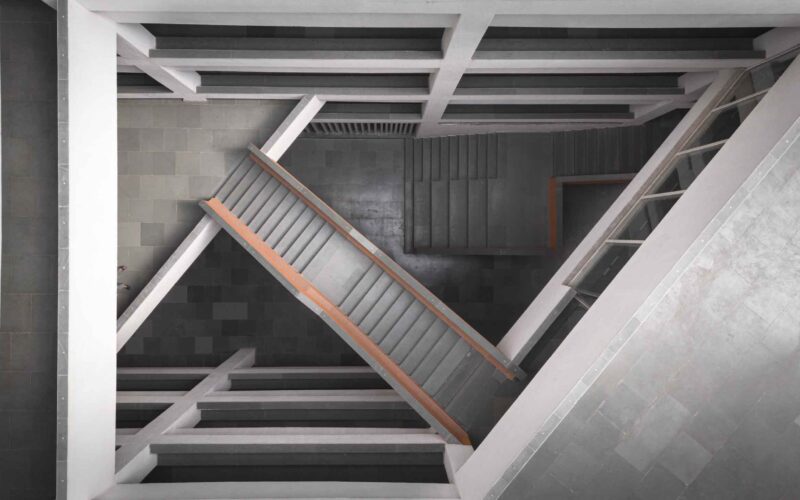

Placing common programs such as the study rooms, pantry, audio visual room, gym, indoor games areas and computer rooms on different floors adjacent to the stairs and overlooking into the inner street formed by the stacked corridors, accelerated interaction of students across multiple floors making it vibrant and socially sustainable.

vjti_veermata_Jijabai_technological_institute_mumbai_student_housing_mobile_offices_01_drawing_podium_plan

vjti_veermata_Jijabai_technological_institute_mumbai_student_housing_mobile_offices_03_drawing_section1

The other element was to establish the connection of this new hostel block with the surrounding built and playground on the existing campus site. This was achieved by extending the podium level as a double height viewing deck that overlooked the grounds. The podium floor of the building is looked at as a 24 hour living courtyard. The student dining and kitchen has been embedded into the ground floor which is overlooked from a few voids of the podium. As the kitchen would need high serviceability it has been kept away from the student activities of the building on the ground floor closer to the back entrance.

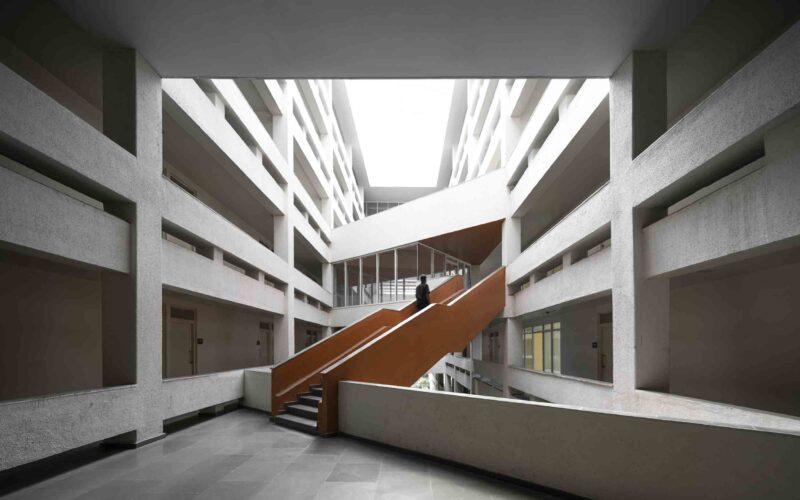

vjti_veermata_Jijabai_technological_institute_mumbai_student_housing_mobile_offices_07

vjti_veermata_Jijabai_technological_institute_mumbai_student_housing_mobile_offices_09

SPECIAL FEATURES

Breathable façades

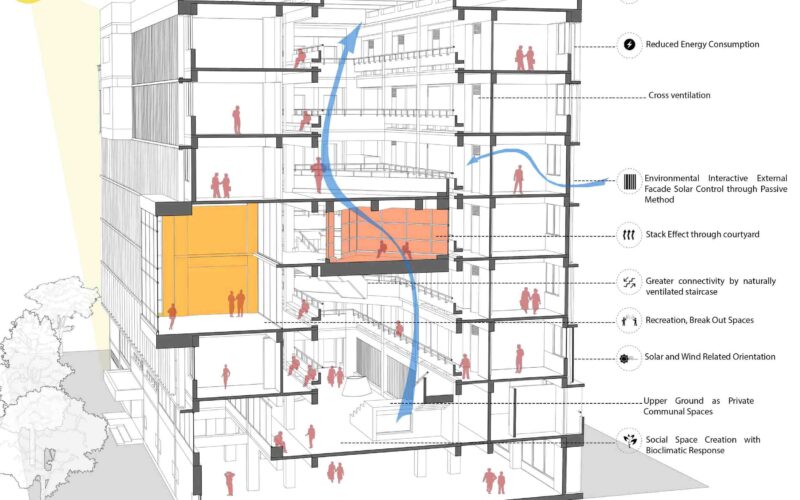

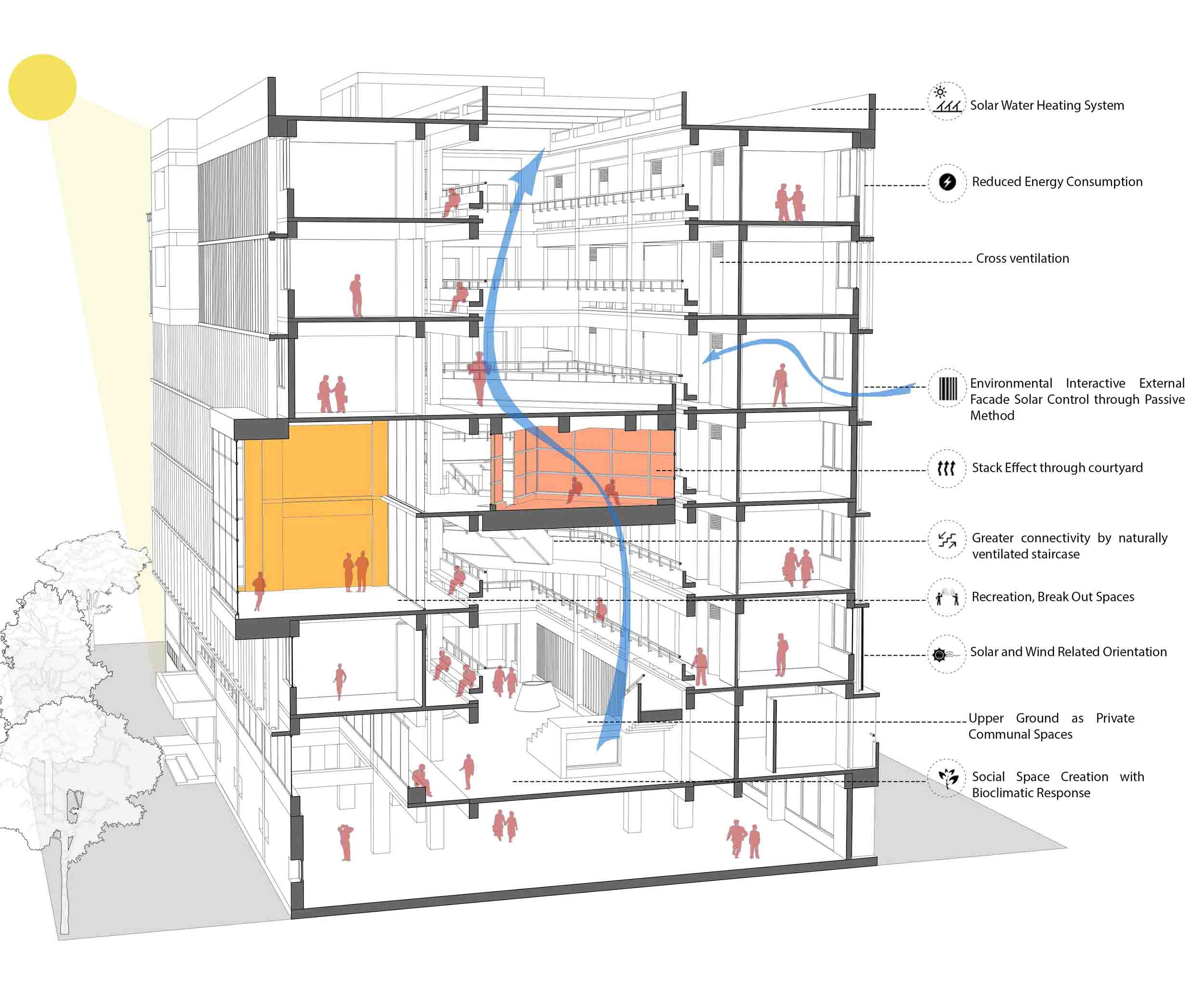

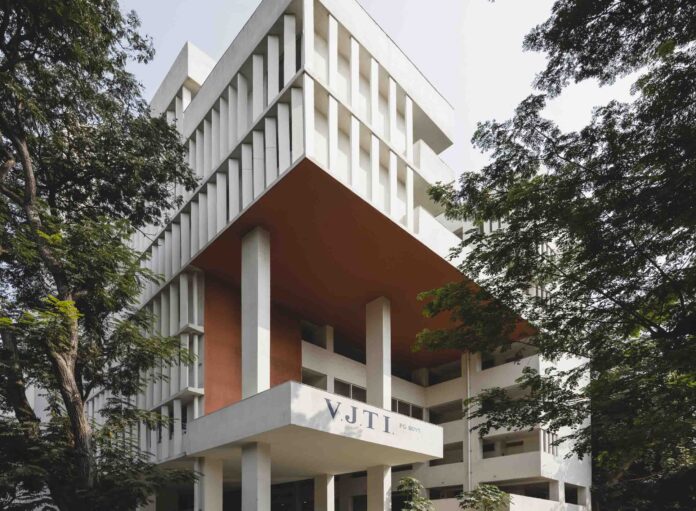

Sustainability plays a prime role in the design of the hostel; the west and east façade act as sun breakers and screens the glass windows of the student rooms. The need for a screen primarily arises with an intent to respond to climate needs and provide cross ventilation to every room. However the design of the screen in itself becomes an expression of the school becoming a characteristic that one sees from afar while approaching the VJTI campus by road.

vjti_veermata_Jijabai_technological_institute_mumbai_student_housing_mobile_offices_05_diagram_elevations

Community spaces as landmarks

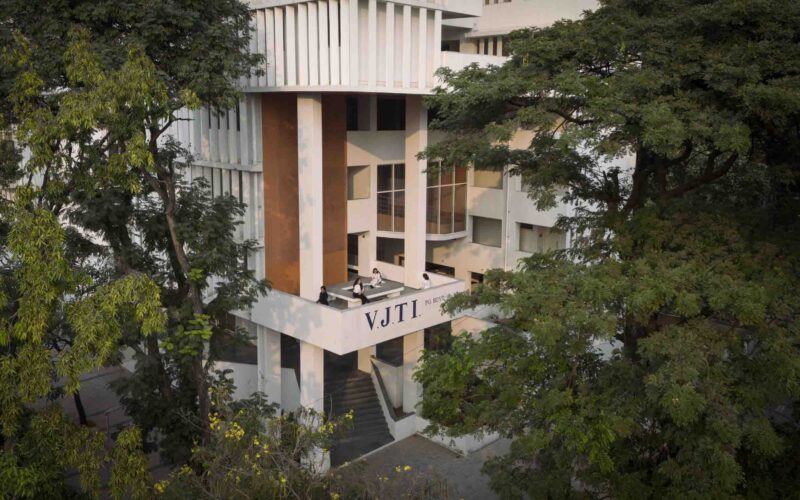

The south side of the building forms a welcoming entrance with an amphitheater and multiple seating areas overlooked by the suspended TV room and terraces above. The play of volumes as solid mass and voids are designed to not only respond to the views and provide climatic responses but become social landmarks. ( TV room and other rooms in the atrium a follies?)
